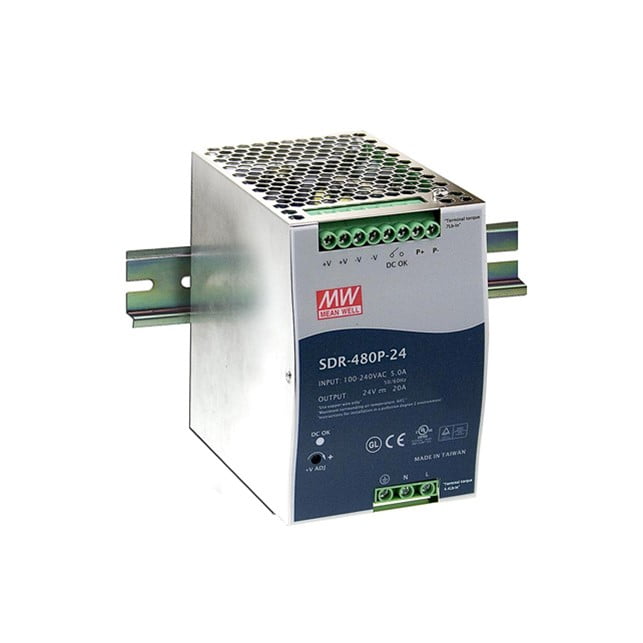

Advantech PS, W/PARALLEL FUNCTION, DIN, METAL, 480W, 24V (BB-SDR-480P-24)

• Parallel function (7+1)
• Input voltage: 127 – 370 VDC, 90 – 264 VAC (47 – 63 Hz)
• 80A input inrush current, max and 0.6 mA leakage current, max
• 80A input inrush current, max.
• 720W peak power (3 seconds)
• + 15% over-load adjustment and 110 – 150% over-load protection
• I/P-O/P, withstand voltage: 3000 VAC
• I/P-FG, withstand voltage: 2000 VAC and O/P-FG, withstand voltage: 500 VAC
• Operating temperature: -25 – +70 °C

Datasheet BB-SDR-480P-24.pdf
