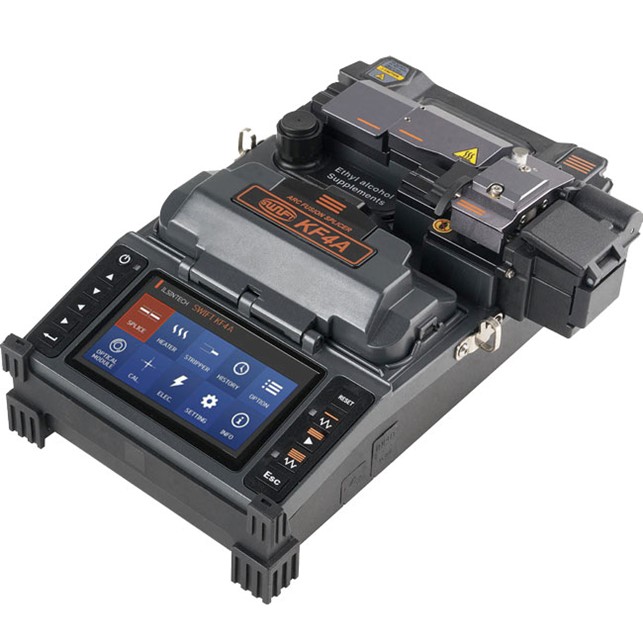

All-in-One Splicer KF4A
Rp22.644.000
Specification :
| Category | Description |
| Fiber alignment |
IPAAS Active Cladding Alignment |
| Applicable type of fibers |
0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable |
| Fiber count |
Single fiber |
| Applicable fiber dimensions |
Cladding diameter: 125μm, Coating diameter: 150μm~3mm |
| Fiber setting and cleaved length |
0.20in to 0.63in |
| Splicing modes |
Splice mode: 300, Heat mode: 100 |
| Typical splice loss |
SM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB |
| Return loss |
> 60dB |
| Splicing time |
Typical 7 sec with SM |
| Sleeve heating time |
Typical 13sec with IS-60 mode, IS-60 sleeve |
| Applicable protection sleeve |
2.4in, 1.5in and micro sleeves |
| Storage of splice result |
Data: 5,000ea up to, Image: 5,000ea up to |
| Tension test |
1.96N to 2.25N |
| Operating condition |
Altitude: 0~5,000m above sea level, Temperature: -14°F~122°F, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
| Storage condition |
Temperature: 40°F~176°F, Humidity: 0~95% |
| Dimension |
132(W) x 212(L) x 73(H)mm (without rubber protector) |
| Weight |
1.5kg (including battery) |
| Viewing method and display |
2 AXIS Two CMOS cameras with 4.3-inch color LCD monitor |
| Fiber view and magnification |
X/Y: 110X , Max: 220X |
| Power supply |
Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC charger |
| No. of splice cycles with battery |
Typical 200 cycles |
| Electrode life |
38,000 splices |
| Blade Life |
Up to 77,000 cleaves |
| Terminals |
USB |
