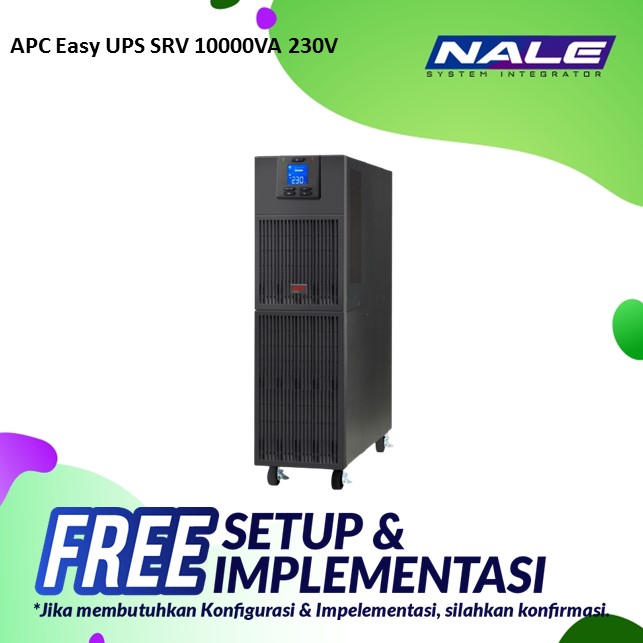

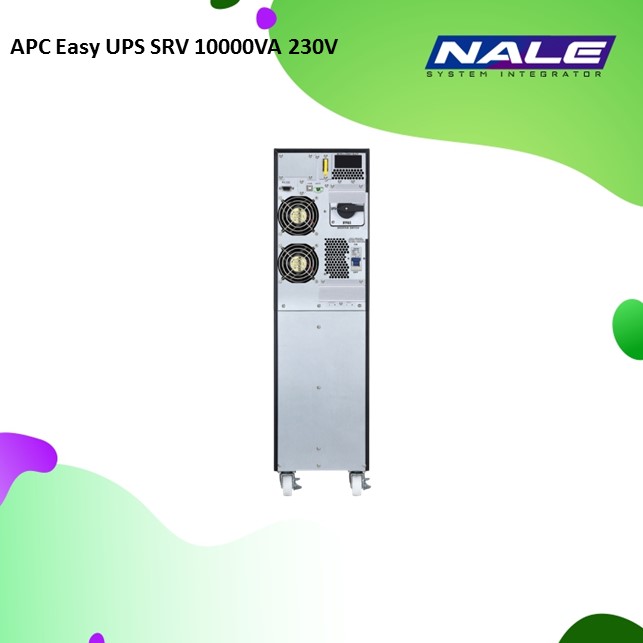

APC Easy UPS SRV 10000VA 230V (SRV10KI)
Rp72.751.806
-
Output power capacity: 10.0kWatts / 10.0kVA
-
Nominal Output Voltage: 230V
-
Nominal Input Voltage: 230V
-
Input Connections: Hard wire 3-wire (1P + N + E)
- Basic UPS signalling RS-232 cable, CD with software, USB cable, User manual
- PF: 1
- Back up time Full Load: 2.9 min (10000 watt)
Deskripsi
Deskripsi APC Easy UPS SRV 10000VA 230V(SRV10KI)
| Output | |
| Max Configurable Power (Watts) | 10.0kWatts / 10.0kVA |
| Efficiency at Full Load | 94.0 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Topology | Double conversion online |
| Waveform type | Sine wave |
| Bypass | Internal bypass (automatic and manual) |
| Input | |
| Input frequency | 40 – 70 Hz |
| Input voltage range for main operations | 110 – 300 Adjustable (half load), 176 – 300V |
| Efficiency at Full Load | 94.0 % |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 3hour(s) |
| Battery Charge Power (Watts) | 531 Watts |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, Intelligent Smart Slot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 600Joules |
| Physical | |
| Maximum Heigh | 685MM, 68.5CM |
| Maximum Width | 190MM, 19.0CM |
| Maximum Depth | 447MM, 44.7CM |
| Net Weight | 65.0KG |
| Conformance | |
| Approvals | CE, EAC, IEC 62040-1-1, IEC 62040-1-2 |
| Standard warranty | 2 years repair or replace |
| Sustainable Offer Status | |
| RoHS | Compliant |
