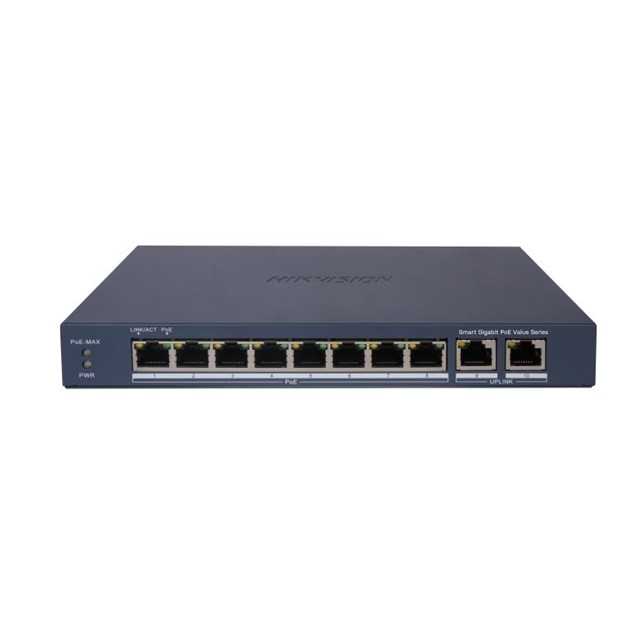

HikVision 8 Port Gigabit Smart POE Switch (DS-3E1510P-EI/M)
Rp1.247.385
- 8 × Gigabit PoE port,2 × Gigabit RJ45 port
- Total PoE Power Budget 60W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
Deskripsi
Spesifikasi :
| Shell | Metal material |
| Net Weight | 0.54 kg (1.19 lb) |
| Gross Weight | 1.08 kg (2.38 lb) |
| Dimensions | 217.6 mm × 27.6 mm × 108.5 mm (8.57” × 1.09” × 4.27”) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | 40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54VDC, 1.2A |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 2.5W |
| Surge Protection | 6KV |
| Port | 8 × Gigabit PoE port,2 × Gigabit RJ45 port |
| MAC Address Table | 4 K |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88Mpps |
| Internal Cache | 1.5 Mbits |
| Power supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
