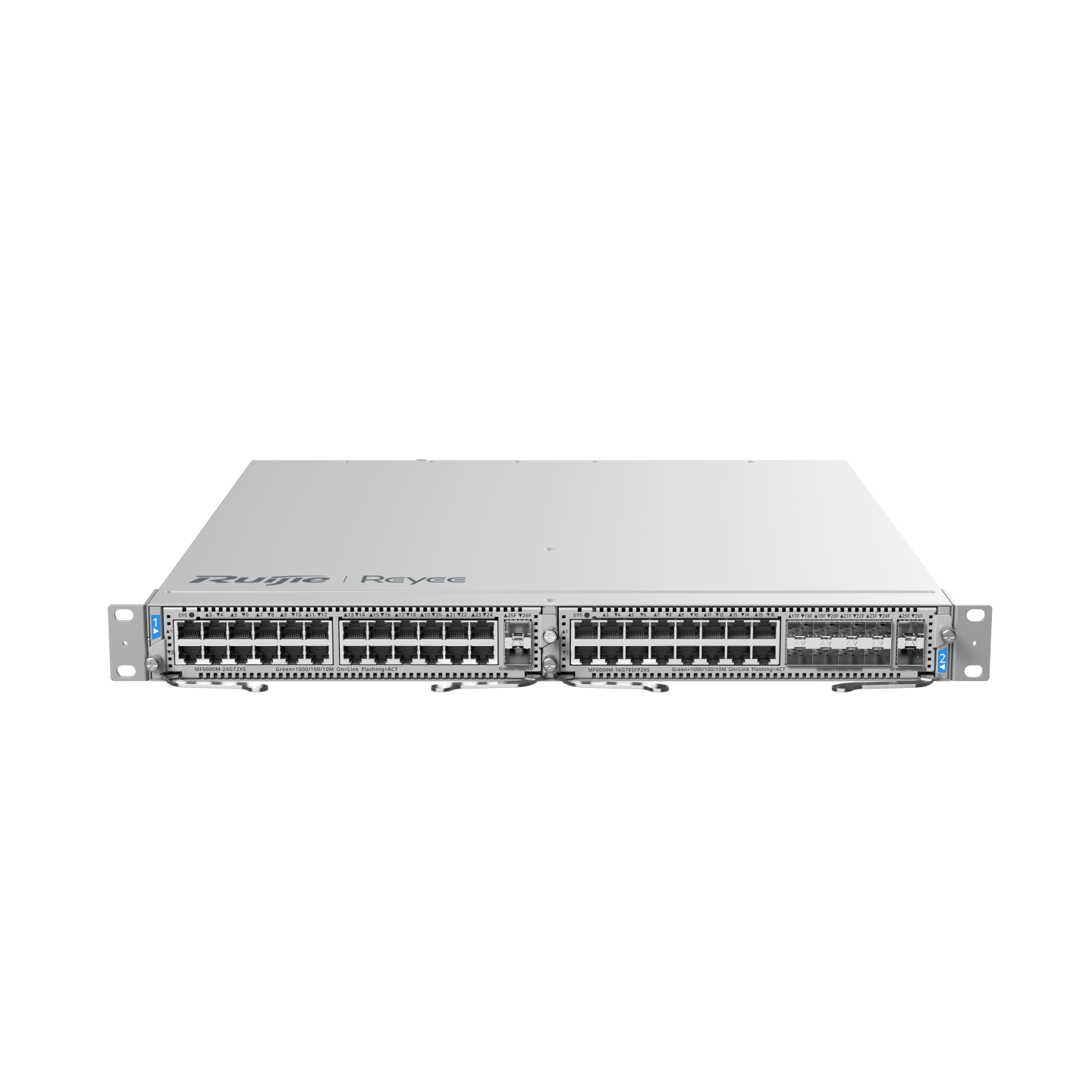

RG-NBF6002M, Switch Manage Layer 3 e-Lighten
Rp19.587.060
– Switch Core + OLT 2-dalam-1 untuk Jaringan yang Fleksibel
– Desain Slot-Ganda untuk Ekspansi Fleksibel
– Mendukung Hingga 320 AP/Switch Akses e-Lighten
– Uplink 10G
Deskripsi
| Model | RG-NBF6002M |
| Basic | |
| Number of Line Card Slots | 2 |
| Number of Management Ports | 1 x 10/100/1000BASE-T MGMT port |
| Recommended Client Limits | 1200 |
| Recommended Camera Limits | 200W H265:800 400W H265:400 800W H265:200 |
| PoE Support | N |
| Max. Power Consumption | 126 W |
| Device Dimensions (W x D x H) | 442 mm x 460 mm x 44 mm (17.40 in. x 18.11 in. x 1.73 in.) |
| Switching Capacity | 216Gbps |
| Forwarding Rate | 132Mpps |
| Power Supply Surge Protection | Common 6 kV Differential 6 kV |
| Port Surge Protection | Common 6 kV |
| Temperature Alarm | Ambient temperature monitoring |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| EMC | GB/T 9254.1-2021 |
| Casing | Al-Zn-Coated Steel |
| Mounting | Rack-mount |
| Power Supply Options | 2 x power module slots
The NBF6002M OLT power supply (model PA150I-FS) is not included with the main unit by default and must be ordered separately.
|
| Buttons (Reset Button Excluded) | 0 |
| Gross Weight | 6.82 kg (15.03 lbs) |
| Net Weight | 5.4 kg |
| Software Features | |
| VLAN | Y |
| N:1 Mirroring | Y |
| DHCP Server | Y |
| MAC-based Extended ACL | Y |
| IP-based Extended ACL | Y |
| Ingress ACL on Layer 2 Physical or Logical Interfaces | Y |
| Virtual Cluster Switching (VCS) | Y |
| Layer 3 Support | Y |
| MAC Address Table Size | 32000 |
| Static MAC Address | Y |
| MAC Address Filtering | 256 |
| Max. Number of SVIs | 64 |
| Port-Level Rate Limiting (Ingress/Egress) | Y |
| Max. Number of Layer 3 Aggregate Interfaces | 16 |
| Hardware-based CPU Protection Policy (CPP) | Y |
| Ruijie Rapid Link Detection Protocol (RLDP) | Y |
| IPv6 | Y |
| IGMP Snooping | Y |
| Hardware Specifications | |
| Max. Number of ONUs (APs and Access Switches) | 320 |
| IP-based Standard ACL | Y |
| PON/Ethernet Optical Transceiver Auto-Sensing | Y |
| 1G PON Optical Transceivers | Y |
| 2.5G PON Optical Transceivers | N |
| 10G PON Optical Transceivers | N |
| Alerting of Non-Ruijie PON Optical Transceivers | N |
| Number of ONUs per 1G PON Port | 32 |
| Number of ONUs of All 1G PON Ports per Device | 320 |
| Total Number of PON Ports | 16 |
|
Maximum Number of PON Ports Supported at Device Level
|
16 |
| RTT-based Distance Measurement | Y |
| Accuracy of Ranging Between OLT and ONU | 100 m (328.08 ft.) |
| Layer 2 Isolation for ONUs Connected to the Same OLT Port (disabled by default) | Y |
| Max. Registration Distance for Eligible ONUs (Default: 5 km, Maximum: 10 km) |
Y |
| Static Bandwidth Allocation (SBA): Fixed Bandwidth for ONUs | Y |
| Dynamic Bandwidth Allocation (DBA): Maximum Bandwidth for ONUs | Y |
| OLT Displaying OLT Optical Transceiver Info (Temperature/Voltage/Current/Tx Power/Rx Power/Port Mode) |
Y |
| OLT Displaying ONU Optical Transceiver Info (Temperature/Voltage/Current/Tx Power/Rx Power/Port Mode) |
Y |
| ONU Optical Transceiver Exception Reporting on OLT (Abnormal Temperature, Voltage, Current, and Tx/Rx Power) |
Y |
| OLT Automatically Connecting ONUs | Y |
| Type B Dual-homing Protection | N |
| Type D Dual-homing Protection | N |
| Reset Button | Y |
| Automatic Resolution of Management Port IP Address Conflict | N |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| IP Rating | IP20 |
| Line Cards | |
| Model | Description |
| MF6000M-16FS8GT2XS | Line Card for e-Lighten 10G Layer 3 Managed Switch RG-NBF6002M 16 x 1G PON/SFP Ports + 8 x 1G Ethernet Ports + 2 x 10G SFP+ Ports |
| MF6000M-16GT8SFP2XS | Line Card for e-Lighten 10G Layer 3 Managed Switch RG-NBF6002M 16 x 1G Ethernet Ports + 8 x 1G SFP Ports + 2 x 10G SFP+ Ports |
| MF6000M-24GT2XS | Line Card for e-Lighten 10G Layer 3 Managed Switch RG-NBF6002M 24 x 1G Ethernet Ports + 2 x 10G SFP+ Ports |
