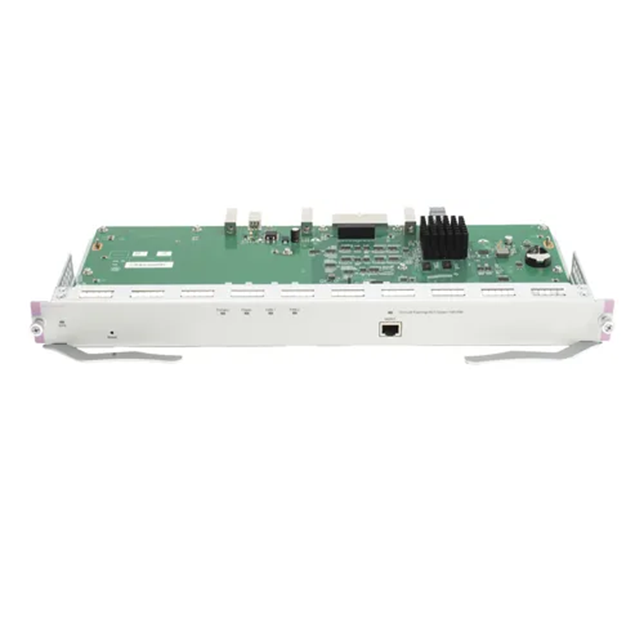

Ruijie M7006-CM Supervisor Engine Module
Rp19.884.540
Deskripsi
Spesifikasi
| Feature | Details |
|---|---|
| Model | M7006‑CM |
| Compatibility | RG‑NBS7003 and RG‑NBS7006 chassis |
| Management Port | 1 × 10/100 Mbps RJ45 |
| CPU | 1.0 GHz dual-core |
| Memory | 256 MB Flash, 1 GB DDRIII SDRAM |
| Reset Button | Yes |
| LED Indicators | SYS, Primary, FAN1/2, Power, Link/ACT |
| Power Consumption | ≤ 30 W |
| Operating Temp | 0 °C to 50 °C |
| Storage Temp | –40 °C to +70 °C |
| Humidity | 10–90 % RH non-condensing |
| MTBF | |
| Dimensions | 438.5 × 196 × 40.2 mm |
| Weight | 1.75 kg |
| Hot-Swappable | No |
| Safety Standard | GB 4943.1 |
