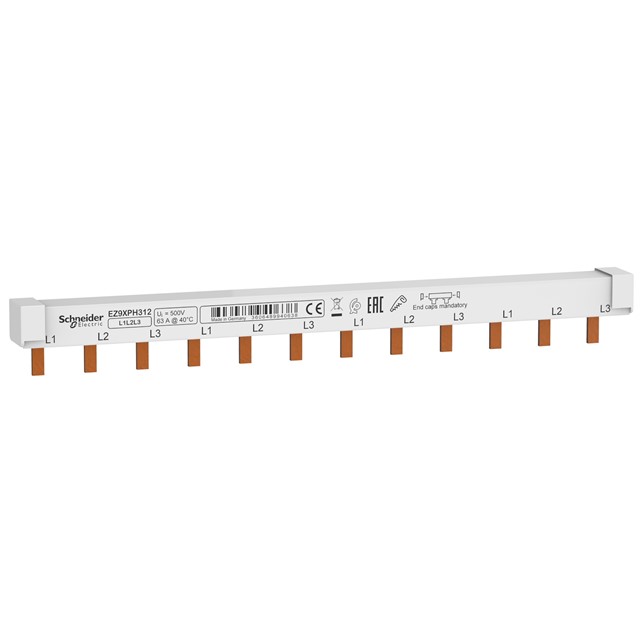

Schneider Comb busbar, Easy9 XP, 3P, 63 A, 12 modules
Rp106.493
Deskripsi
Spesifikasi Schneider Comb busbar, Easy9 XP, 3P, 63 A, 12 modules
| Range | Easy9 |
|---|---|
| Product or component type | Comb busbar |
| Mounting mode | Horizontal |
| Accessory / separate part category | Connection accessory |
| Lines description | 3L |
| Length in 18 mm modules | 12 |
| Number of ways | 4 ways 3 L |
|---|---|
| Poles configuration for 1 way | 1 x 3P |
| Connection pitch | 18 mm |
| Connector type | Tooth |
| Distance between way | 54 mm |
| insulation | Insulated |
| Device presentation | Cuttable |
| Provided equipment | 2 end piece |
| [Ie] rated operational current | 63 A at 40 °C |
| [Ue] rated operational voltage | 230 V AC 50 Hz Ph/N 400 V AC 50 Hz Ph/Ph |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-1 |
| Mounting location | Top on tunnel type terminals |
| 9 mm pitches | 24 |
| Width | 220 mm |
| Colour | Light grey (RAL 7035) |
| Range compatibility | Easy9 (Easy9 XP) |
| Standards | IEC 60439-1 IEC 60664 |
|---|---|
| Fire resistance | 850 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree | 2 |
